Description

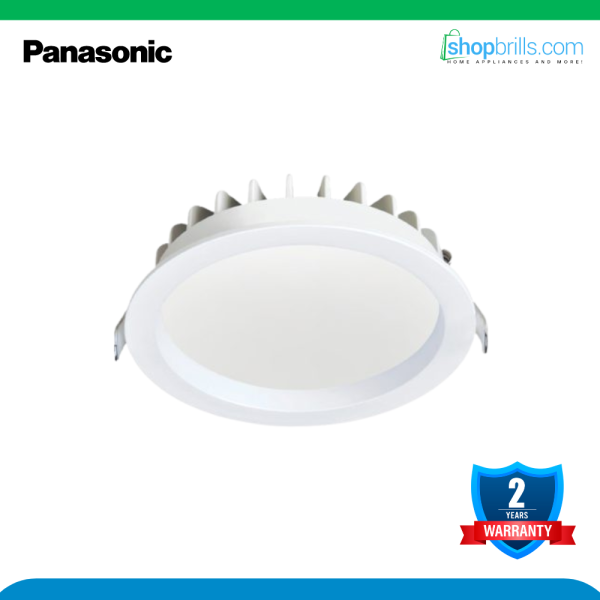

New recess mounting circular LED downlight luminaire for bright light equipped with die-cast aluminum housing with electrophoresis coating, exclusively designed heat sink, anti-glare diffuser accompanied with integrated energy-efficient electronic driver.
Features:
- Input Voltage : AC220-240V, 50/60Hz
- Voltage operating range : 80-400V
- HPF
- High Surge Protection : 2.5KV
- Long life of LEDs  50,000*BH (L70)
- Confirmed to IEC Safety Standard (IEC60598, IEC61347)
- Optics : Polycarbonate diffuser for better light distribution
- With Driver
Application:
- Residences
- Offices
- Corridors
- Shops
- Shopping Malls
- Showrooms
- Restaurants
- Hotels
Item no | Power | Flux | CCT | Dimension | Cutout dimension | Weight |
ADL07R153 | 15W | 1120lm | 3000K | 190×68 | Ø170 | 0.43 Kg |
ADL07R154 | 15W | 1200lm | 4000K | 190×68 | Ø170 | 0.43 Kg |
ADL07R156 | 15W | 1270lm | 6000K | 190×68 | Ø170 | 0.43Kg |
